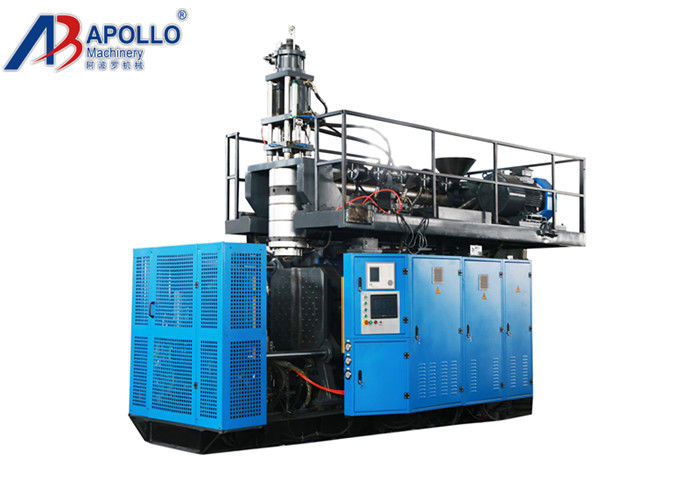

HDPE 25L 30L 35L de Plastic Machine van het Trommelafgietsel

HDPE 25L 30L 35L Plastic Drum Moulding Machine

Grote Afbeelding : HDPE 25L 30L 35L de Plastic Machine van het Trommelafgietsel

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	ABC
Certificering:	CE/SGS
Modelnummer:	ABLD90

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1set
Prijs:	Negotiable
Verpakking Details:	Film verpakking
Levertijd:	50days
Betalingscondities:	L/C, T/T
Levering vermogen:	20sets per maand

Contact

Gedetailleerde productomschrijving

Max. volume:	60L	schroefdiameter:	90mm
De aandrijvingspomp van de oliepomp:	15KW	Het vastklemmen kracht:	320kN
Materailopslag:	6.6L	Maximum Matrijzendiameter:	340mm
Hoog licht:	35L de plastic Machine van het Trommelafgietsel , HDPE de Plastic Machine van het Trommelafgietsel

25L, 30L, 35L, 50L plastic oil yellow drum extrusion automatic blow molding machine in blue

Production line of blow molding machine
Product: 50L
Power supply: 380v 50 Hz Tri-phase
Output capacity: 1000pcs/day
Suitable raw material: HDPE

Model No.: ABLD90(single station single die head)

This type of blow molding machine ABLD90 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.

Basic installation including

Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.

Unit price (including one series of spare parts)

Unite price (including one series of spare parts for wearing parts)

Basic parameters	Suitable materail	HDPE
	Max volume	60L
	Capacity	1000pcs/day
	Size	LXWXH=5.2x2.9x4.6(M)
	Weight	13.5T
System class	System details	Parameter	Remark
Plasticizing system	Summary	High efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting
	Gear box	Hard Tooth Surface, High Strength, Low Noise Antiwear Reducer
	Barrel screw	∮90mm,L/D=25 38CrMoALA High quality nitride steel, gradual mixing, high efficiency and energy saving screw	The barrel feeding place is available with Cooling function
	Plasticizing	150Kg/H	ABS
	Heating zone	4	Auto heading
	Heating power	18KW/H
	Screw motor	3 phase induction motor
	Cooling fan	4	Auto cooling
Extruction head	Summary	High quality alloy steel with central feeding
	Head number	1
	Head centre distance	/
	Max. die	∮340mm
	Heating zones	4 Ceramic heater
	Heating power	18KW
Open and close mold	Summary	High Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism
	Clamping force	320KN
	Mold stroke	450～1100mm
	Template size	WXH: 900x900mm
	Mould thickness range	500-100mm
Electrical control system	Summary	PLC + touch screen (man-machine interface) standardized extrusion and blow hollow forming machine control system (automatic monitoring, fault alarm, automatic counting, auxiliary function selection)
	Operating interface	Touch screen operation, fault alarm auto-display
	Action control	XIEHE system from TAIWAN, Programming in Chinese and English
	Electrical protection	Electrical Short Circuit Automatic Protection Function with Current Overload
Hydraulic system	Summary	Multifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving
	Oil pump motor	Servo system
	Oil pump	Servo pump SUMITOMO from Switzerland
	Valve parts	Imported Hydraulic Valve Assembly
	Oil pipe	Double-Layer High Pressure Wear-Resistant Tubing
	System pressure	100Kg/cm²
	Cooling ways	Independent water circulation, oil cooler cooling
Air system	Summary	Taiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action
	Air pressure	0.8Mpa
	Air displacement	1.0M³/min
	Soleniod valve	AIRTAC from TAIWAN
Cooling system	Summary	Mold, barrel, oil source three independent cooling water lines, non-interference with each other
	Cooling medium	Natural water and groundwater (frozen water is better)
	Water flowing	90L/min
	Water pressure	0.3MPa
